PROMPT REPAIR SERVICE

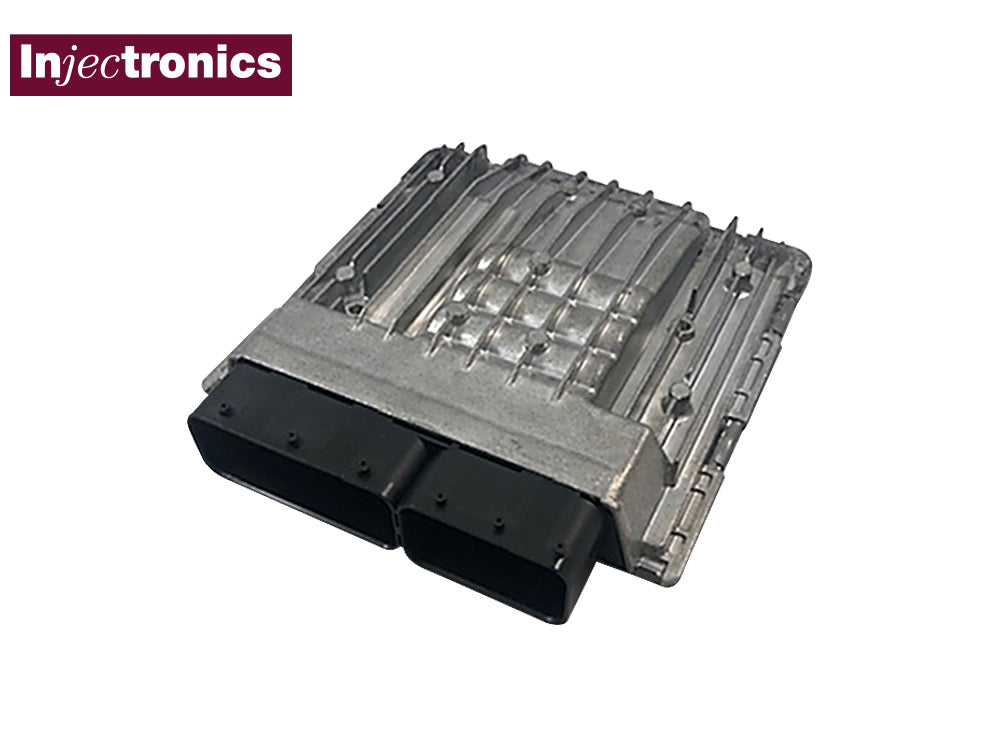

BMW MSV70 ECM

Repair Code: MSV70REP

1 1
Applications
  • BMW E60 N52 525i 2006-2007
  • BMW E60 N52 525xi 2006-2007
  • BMW E60 N52 530i 2006-2007
  • BMW E60 N52 530xi 2006-2007
  • BMW E61 N52 530xi Touring 2006-2007
  • BMW E85 N52 Z4 3.0i Roadster 2006-2008
  • BMW E85 N52 Z4 3.0si Roadster 2006-2008
  • BMW E86 N52 Z4 3.0si Coupe 2006-2008
  • BMW E90 N52 323i 2006
  • BMW E90 N52 325i 2006
  • BMW E90 N52 325xi 2006
  • BMW E90 N52 330i 2006
  • BMW E90 N52 330xi 2006
  • BMW E91 N52 325xi Touring 2006
Part Numbers
  • 12147553166
  • 12147555361
  • 12147559178
  • 12147561584
  • 12147561684
  • 12147571510
  • 12147577968
  • 5WK90077
  • 5WK90078
  • 5WK90078CO
  • 5WK90081
  • 5WK98084
  • 5WK98084CO
  • 5WK98086
  • 5WK98087
  • 7553166
  • 7555361
  • 7559178
  • 7561584
  • 7561684
  • 7567178
  • 7571510
  • 7577968
  • MSV70
  • MSV 70
Additional Parts

*Required to enable repair

CAS

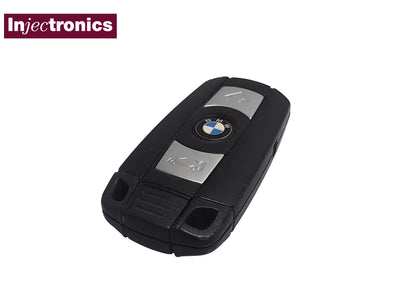

KEY

Critical Information
  • This is a test and repair service of the customers own unit.
  • The customer must send ECM, key and CAS (immobiliser) for testing / repairs
  • The Engine ECM is mounted in a sealed ECM-Box (plastic Box) near the firewall, below the windscreen on the passenger side of the engine bay.

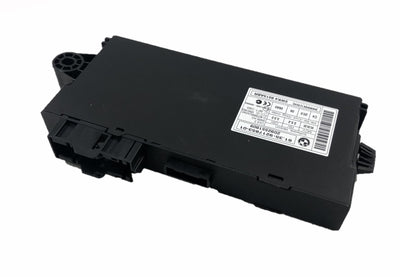

  • The CAS is located next to the steering column
  • These units are often water damaged and unrepairable.
  • Injectronics can supply replacement units and program to suit your vehicle and CAS (immobiliser) providing you send the original ECM, key and CAS (immobiliser).
  • This unit requires specific programming by Injectronics
  • Exchange units are not user programmable
  • Upon refitting your repaired or Exchange Engine Module (ECM) it is imperative that you rectify the reason for the water ingress.
  • When there is a build-up of leaves and foreign matter at the bottom of the windscreen on the passenger side ,the drain will become blocked.
  • When the vehicle is washed, or it rains, water will then run down the windscreen and overflow into the ECM-Box. Eventually the Engine ECM will fail.
  • This Drain must be completely cleared and tested for operation.
  • The ECM-box (E-BOX) drain also needs to be checked for blockage.
  • Click here to view product service information

This repair is specific to the faults listed above.

If you are hoping to resolve other issues not listed, or are seeking diagnostic confirmation of a fault, please call our Technical Services team on 1300 30 80 60
