PROMPT REPAIR SERVICE

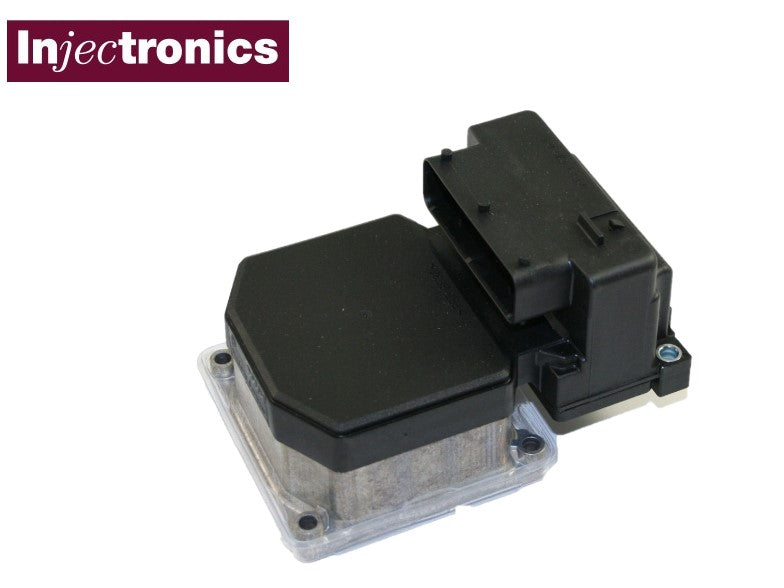

Holden Adventura AWD ABS Module

Repair Code: ABSCREREP

1 1
Applications
  • Holden Adventura VY 5.7L (2003-2006)
  • Holden Adventura VZ 5.7L (2004-2006)
  • Holden Crewman VY 5.7L (2003-2004)
  • Holden Crewman VZ 5.7L (2004-2006)
  • Holden Crewman VZ 6.0L (2006-2006)
  • HSV Avalanche VY 5.7L (2003-2004)
  • HSV Avalanche VZ 5.7L (2004-2006)
Part Numbers
  • 689391512170
  • Bosch 5.3
  • 0265219506
  • 0273004989
  • 68938951421
  • 689389514352
  • 689392500950
  • 689391503763
Critical Information
  • This is a test and repair service of the customers own unit
  • Before removing unit from the vehicle, check and record all fault codes.  Supply these and any other diagnostic information when sending unit to Injectronics.
  • Before removing pipes, clean all dust / grit off ABS module and pipes.
  • When pipes have been removed, seal all holes in ABS hydraulic block to ensure no dirt ingress.
  • ABS module must be left attached to hydraulic block and motor.
  • Pack unit very well to avoid damage during transportation

This repair is specific to the faults listed above.

If you are hoping to resolve other issues not listed, or are seeking diagnostic confirmation of a fault, please call our Technical Services team on 1300 30 80 60
