PROMPT REPAIR SERVICE

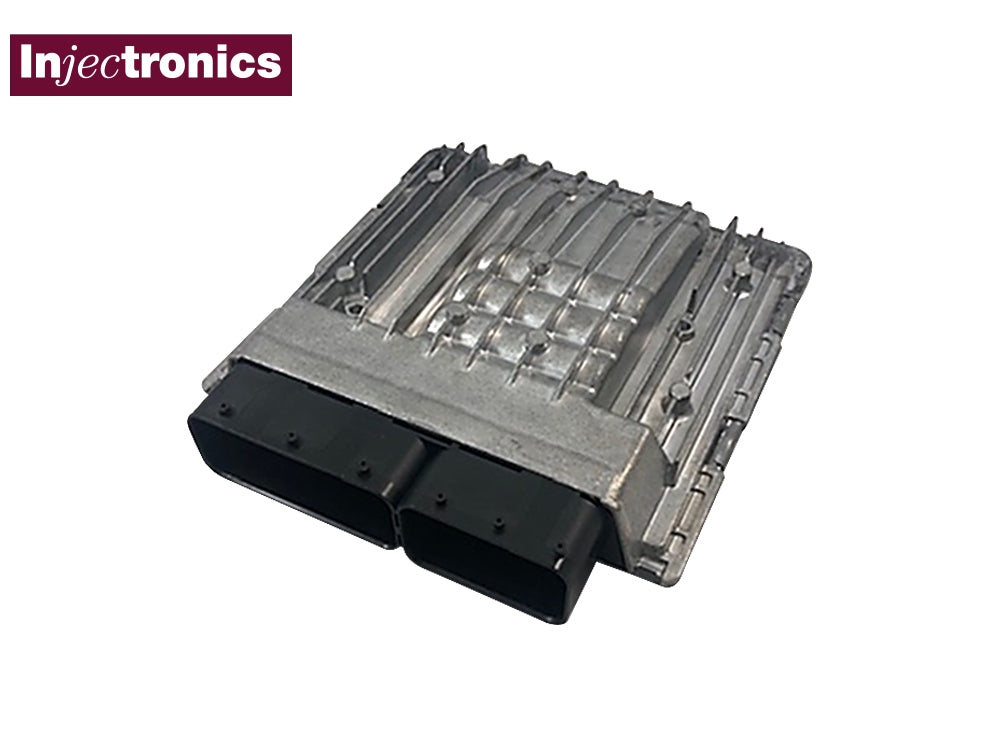

BMW MSV80 ECM
Repair Code: MSV80REP
Applications
- BMW 125i E88 3.0L (2008-2015)
- BMW 125i E82 3.0L (2008-2014)
- BMW 130i E87 3.0L (2007-2010)
- BMW 323i E90 2.5L (2005-2012)
- BMW 323i E91 2.5L (2006-2012)
- BMW 323i E92 2.5L (2007-2010)
- BMW 325i E90 2.5L (2004-2012)
- BMW 325i E91 2.5L (2004-2007)
- BMW 325i E92 2.5L (2006-2014)
- BMW 325i E93 2.5L (2007-ON)
- BMW 325i E93 3.0L (2006-2010)
- BMW 330i E91 3.0L (2005-2007)
- BMW 330i E90 3.0L (2006-2008)
- BMW 523i E60 2.5L (2007-2010)
- BMW 525i E61 2.5L (2006-2010)
- BMW 525i E60 2.5L (2007-2010)
- BMW 530i E60 3.0L (2007-2010)
- BMW 530i E61 3.0L (2007-2010)
- BMW Z4 E85 2.5L (2006-2009)
- BMW Z4 E89 2.5L (2009-2011)
- BMW Z4 E85 3.0L (2006-2009)
- BMW Z4 E86 3.0L (2006-2009)
- BMW Z4 E89 3.0L (2009-2011)
Part Numbers
- 12147560024
- 12147567227
- 12147567230
- 12147567362
- 12147567367
- 12147567428
- 12147567432
- 12147568894
- 12147574540
- 12147574541
- 12147574544
- 12147574545
- 12147576297
- 12147576300
- 12147577996
- 12147577997
- 12147581123
- 12147581124
- 12147583468
- 12147587164
- 12147587165
- 12147591709
- 12147591710
- 12147594483
- 12147594484
- 12147602220
- 5WK90096
- 5WK90188
- 5WK90210
- 5WK91130
- 5WK91136
- 5WK91138
- 5WK91142
- 7560024
- 7567227
- 7567230
- 7567362
- 7567367
- 7567428
- 7567432
- 7568894
- 7574540
- 7574541
- 7574544
- 7574545
- 7576297
- 7576300
- 7577996
- 7577997
- 7581123
- 7581124
- 7583468
- 7587164
- 7587165
- 7591709
- 7591710
- 7594483
- 7594484
- 7602220
Additional Parts
*Required to enable repair

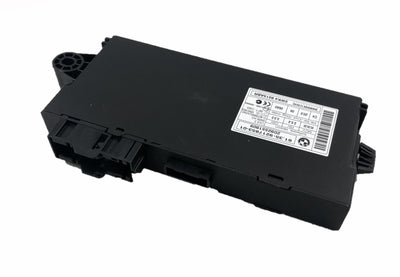

CAS

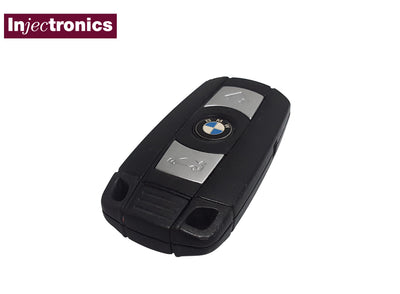

KEY
Critical Information
- This is a test and repair service of the customers own unit.
- The customer must send ECM, key and CAS (immobiliser) for testing / repairs
- The Engine ECM is mounted in a sealed ECM-Box (plastic Box) near the firewall, below the windscreen on the passenger side of the engine bay.
- The CAS is located next to the steering column
- These units are often water damaged and unrepairable.
- Injectronics can supply replacement units and program to suit your vehicle and CAS (immobiliser) providing you send the original ECM, key and CAS (immobiliser).
- This unit requires specific programming by Injectronics
- Exchange units are not user programmable
- Upon refitting your repaired or Exchange Engine Module (ECM) it is imperative that you rectify the reason for the water ingress.
- When there is a build-up of leaves and foreign matter at the bottom of the windscreen on the passenger side ,the drain will become blocked.
- When the vehicle is washed, or it rains, water will then run down the windscreen and overflow into the ECM-Box. Eventually the Engine ECM will fail.
- This Drain must be completely cleared and tested for operation.
- The ECM-box (E-BOX) drain also needs to be checked for blockage.
