PROMPT REPAIR SERVICE

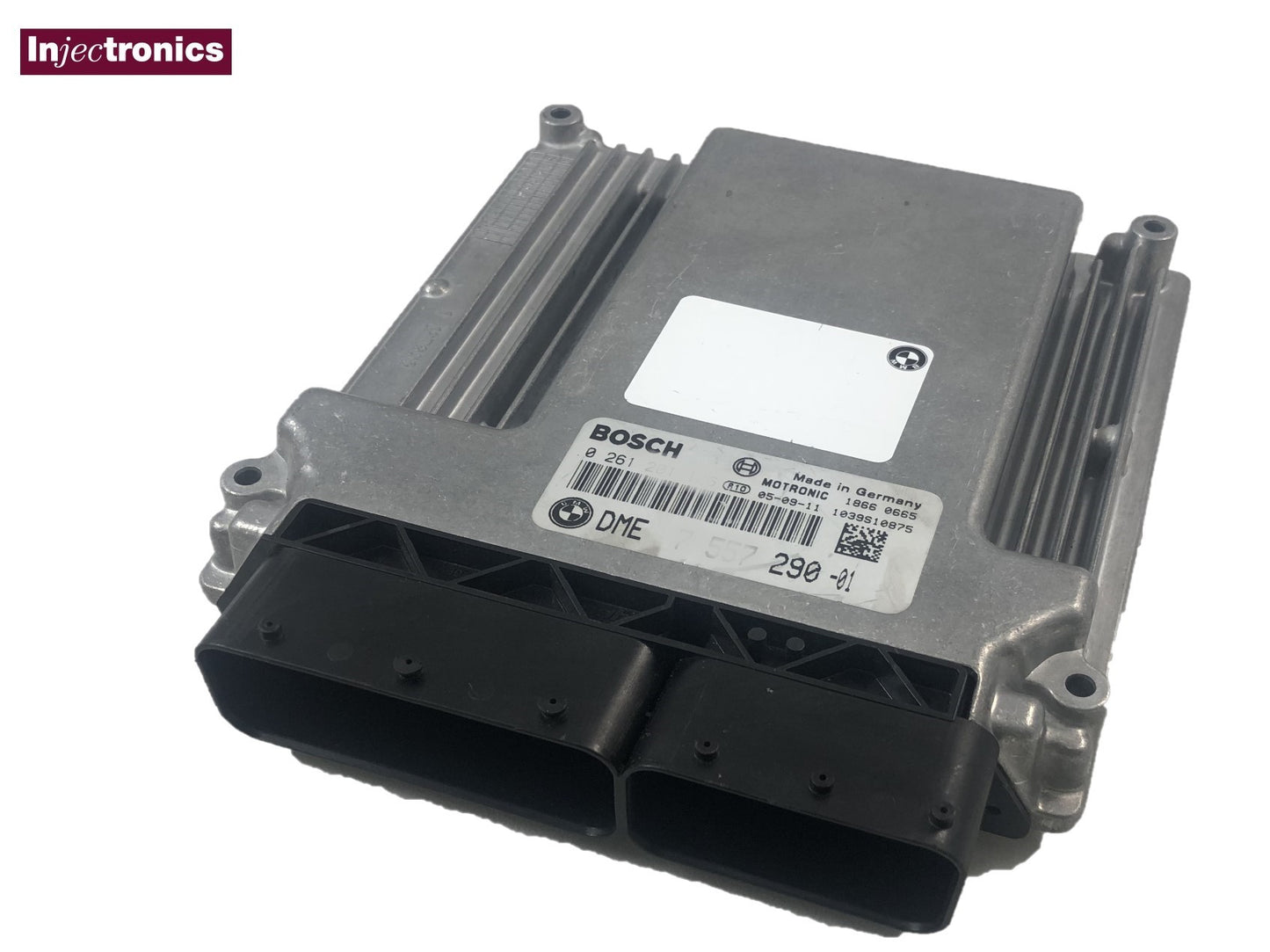

BMW Bosch MEV17.2.1 ECM

Repair Code: MEV1721REP

1 1
Applications
  • BMW 118i E87 2.0L (2007-2011)
  • BMW 320i E93 2.0L (2006-2010)
  • BMW 320i E92 2.0L (2006-2010)
  • BMW 320i E91 2.0L (2008-2012)
  • BMW 320i E90 2.0L (2008-2012)
  • BMW X1 E84 2.0L (2010-2012)
Part Numbers
  • 12147581611
  • 12147614488
  • 12147620350
  • 12147603575
  • 12147603588
  • 12147628656
  • 12147636418
  • 12147640906
  • 12147647826
  • 12147557937
  • 12147577216
  • 12147577217
  • 12147567323
  • 12147557938
  • 12147581849
  • 12147585247
  • 12147589705
  • 12147589706
  • 12147599195
  • 12147617426
  • 12147621076
  • 581611
  • 614488
  • 620350
  • 603575
  • 603588
  • 628656
  • 636418
  • 640906
  • 647826
  • 557937
  • 577216
  • 577217
  • 567323
  • 557938
  • 581849
  • 585247
  • 589705
  • 589706
  • 599195
  • 617426
  • 621076
  • 0261S04114
  • 0261S06473
  • 0261S06901
  • 0261S06902
  • 0261S07234
  • 0261S07838
  • 0261S08194
  • 0261S08683
  • 0261201465
  • 0261201550
  • 0261201551
  • 0261201552
  • 0261S04115
  • 0261S04289
  • 0261S04522
  • 0261S05347
  • 0261S05947
  • 0261S06564
  • 0261S06678
  • 0261S06707
  • 0261S07020
  • 0261S09819
  • 7557937
  • 7557938
  • 7567323
  • 7577216
  • 7577217
  • 7581611
  • 7581849
  • 7585247
  • 7589705
  • 7589706
  • 7599195
  • 7603575
  • 7603588
  • 7614488
  • 7617426
  • 7620350
  • 7621076
  • 7628656
  • 7636418
  • 7640906
  • 7647826
  • 8619738
Additional Parts

*Required to enable repair

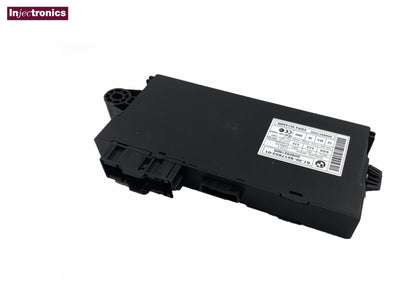

CAS

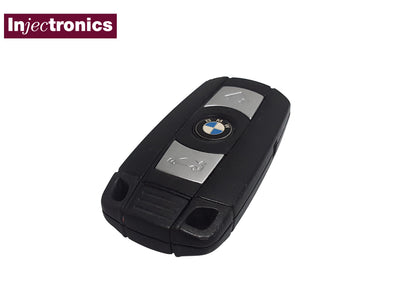

KEY

Critical Information
  • This is a test and repair service of the customers own unit.
  • The customer must send the ECM, CAS (immobiliser) module and key for testing / repairs.
  • CAS is located beside the steering column
  • The Engine ECM is mounted in a sealed ECM-Box (plastic Box) near the firewall, below the windscreen on the passenger side of the engine bay.
  • When there is a build-up of leaves and foreign matter at the bottom of the windscreen on the passenger side ,the drain will become blocked.
  • When the vehicle is washed, or it rains, water will then run down the windscreen and overflow into the ECM-Box. Eventually the Engine ECM will fail.
  • This Drain must be completely cleared and tested for operation.
  • The ECM-box (E-BOX) drain also needs to be checked for blockage.
  • Upon refitting your repaired or Exchange Engine Module (ECM) it is imperative that you rectify the reason for the water ingress.

This repair is specific to the faults listed above.

If you are hoping to resolve other issues not listed, or are seeking diagnostic confirmation of a fault, please call our Technical Services team on 1300 30 80 60
